Ignoring fields in ACE integration testing: a guide

Many users are well-acquainted with the basic integration testing capabilities of the ACE framework, but its features for ignoring specific fields during testing often go unnoticed. In this post, we’ll delve into how to use these capabilities to simplify your testing process and avoid failures caused by dynamic data such as UUIDs and timestamps.

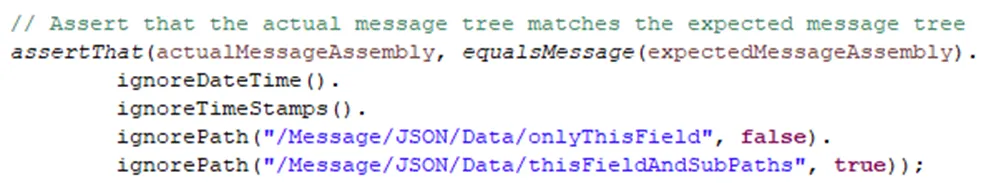

If you don’t feel like reading the entire test setup and just want to get to the sweet part—I got you.

Setting up the test environment

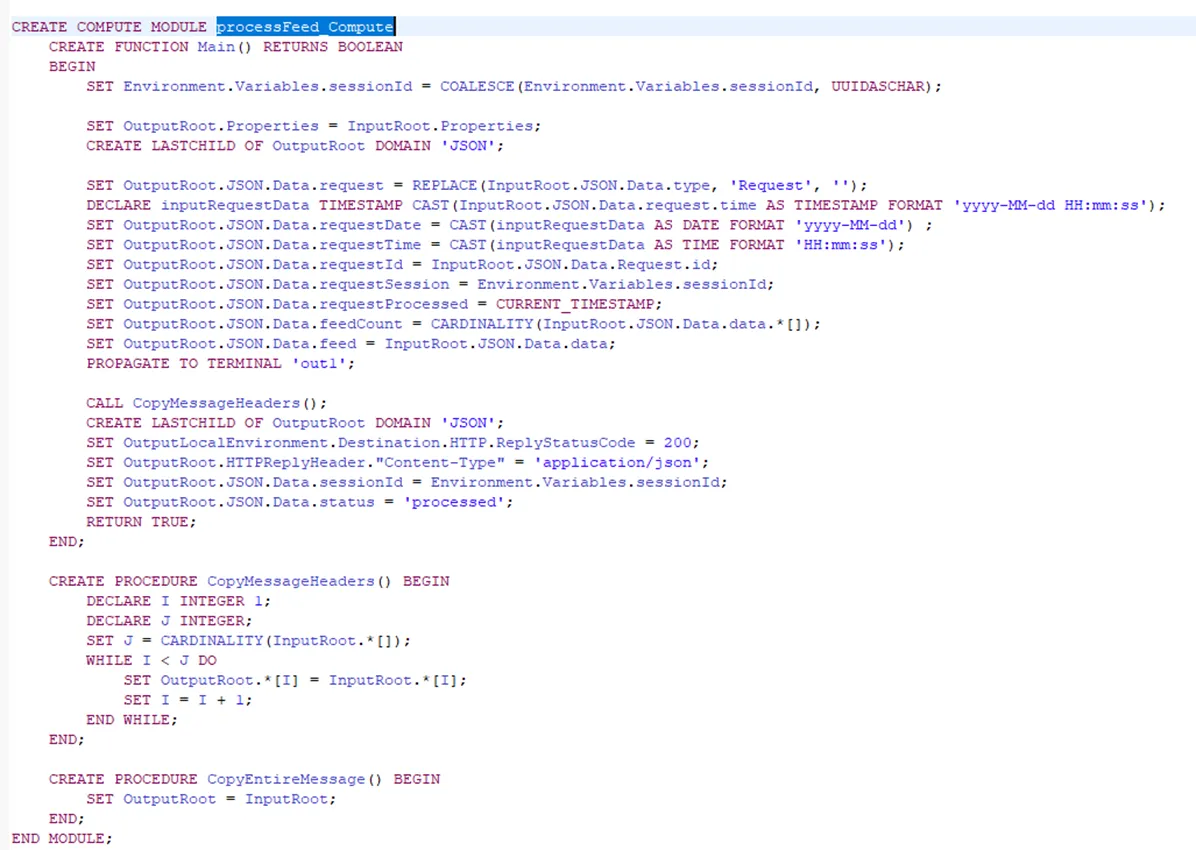

Let’s start with a simple setup. Our test flow receives an HTTP call, processes the data, and outputs results. It maps, transforms, and adds fields. Nothing fancy, but enough to demonstrate how this works in practice.

Creating and running the test

Let’s create the test case:

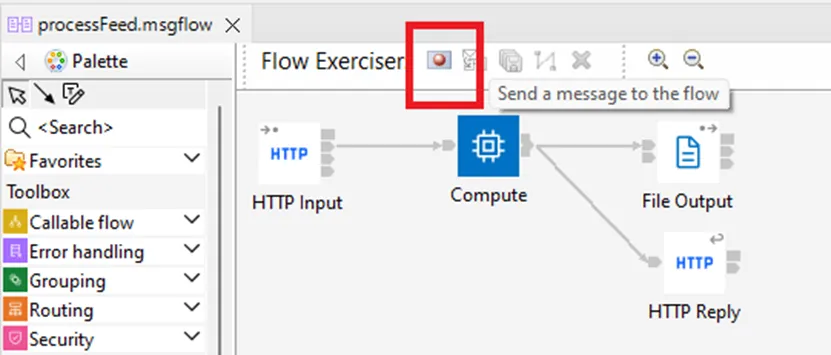

Start the Flow Exerciser.

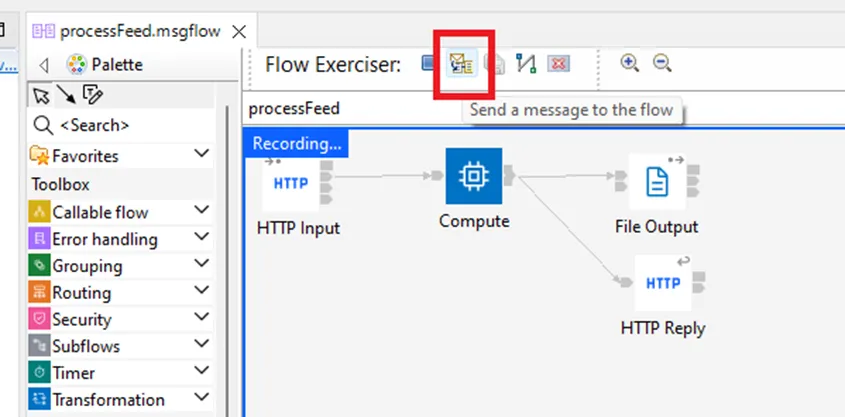

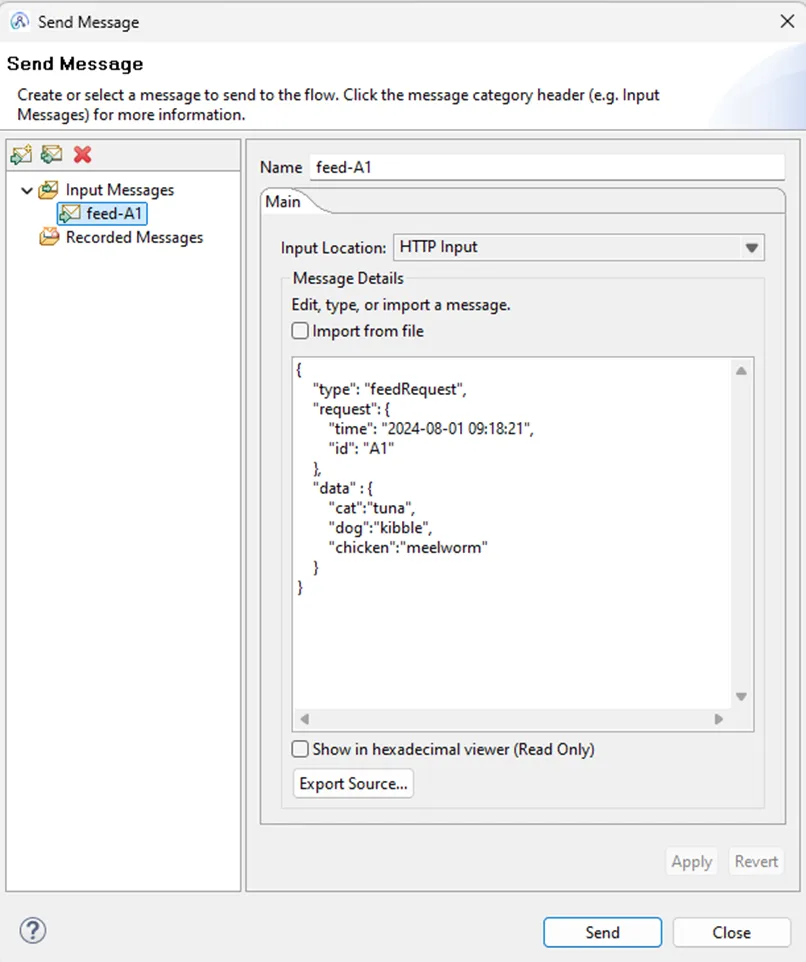

Send a test message through the flow.

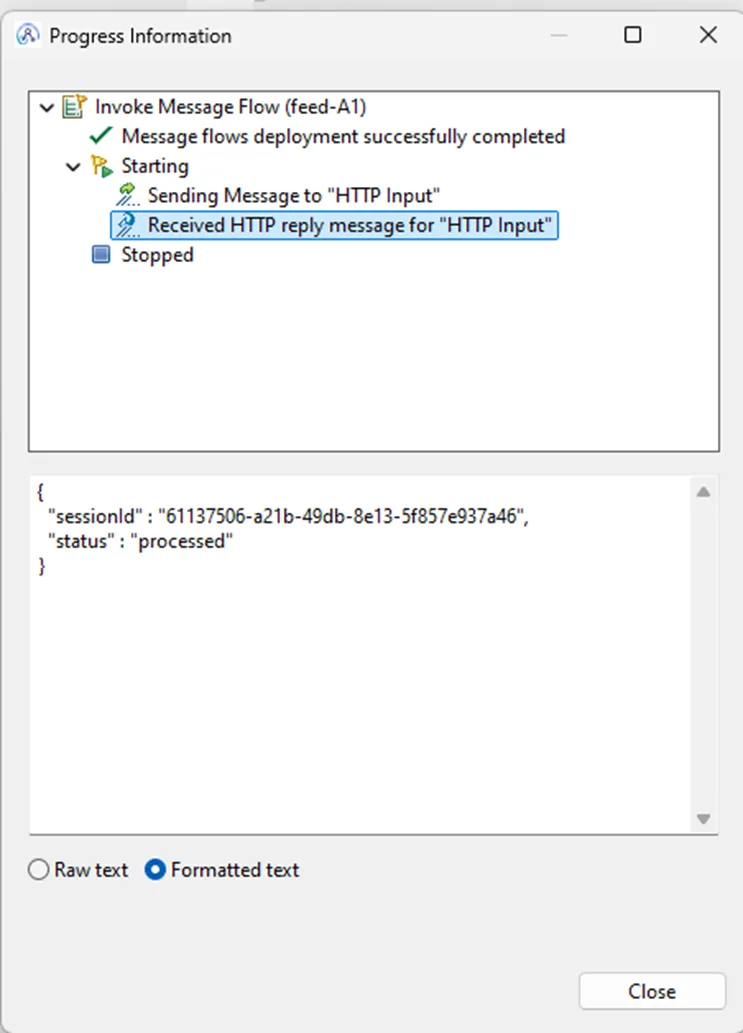

Check the response—make sure there’s no error, and that it looks correct.

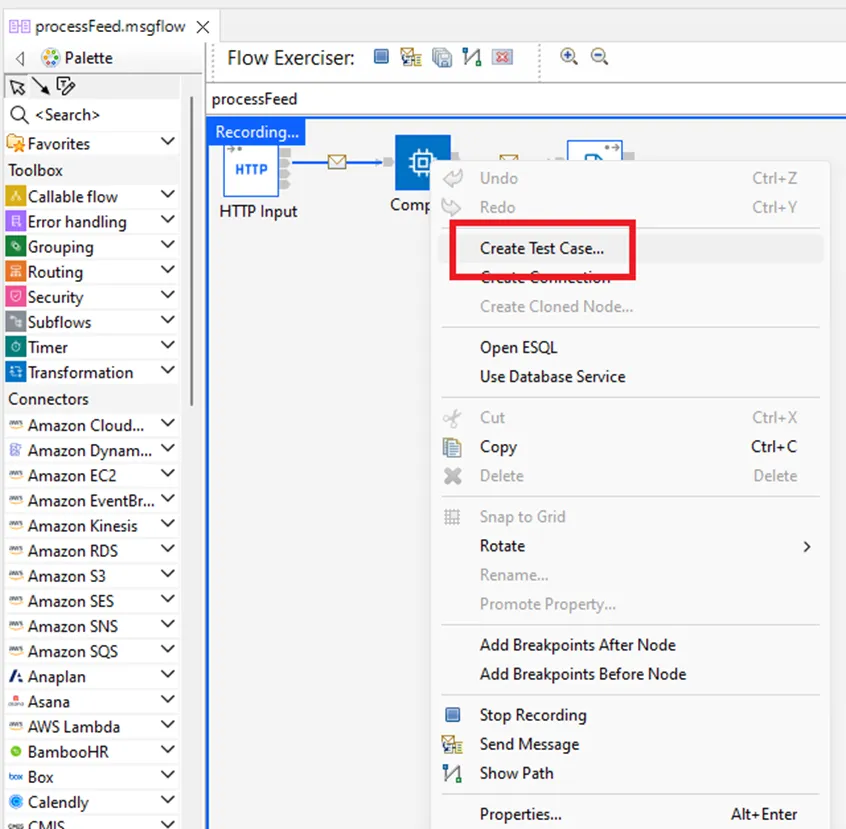

Right-click on the node you want to test and select Create Test Case.

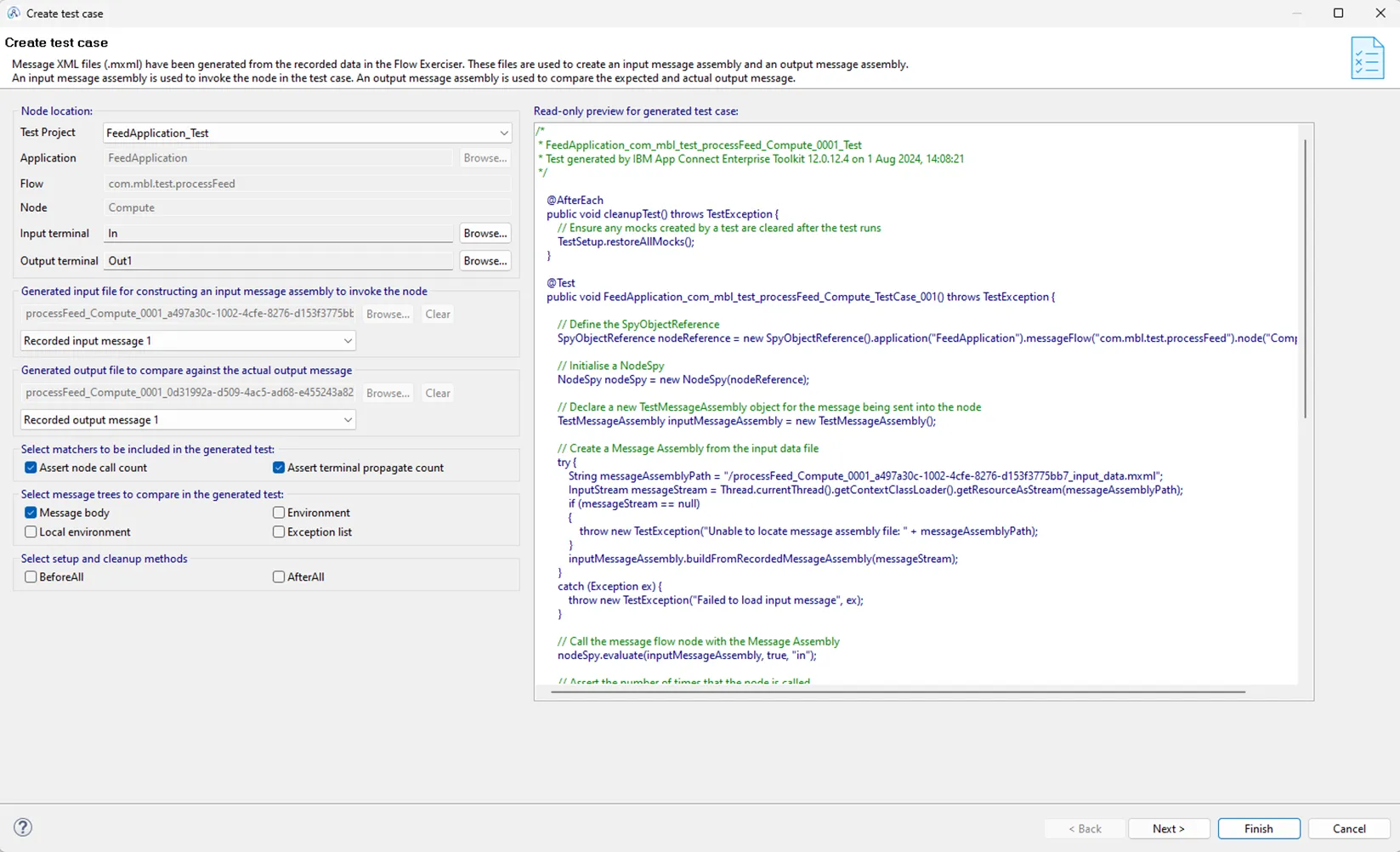

For this blog, we’ll only focus on the message body. Accept the defaults when creating the test case.

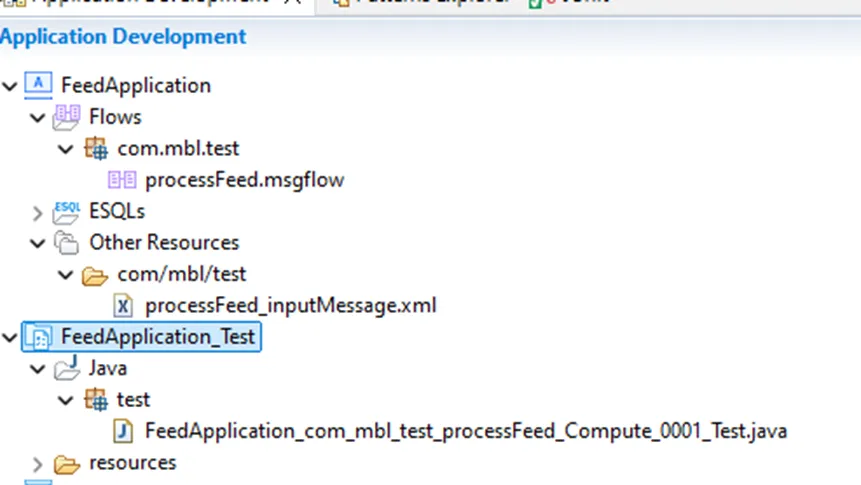

Click Finish, and you’ll see the newly created test case—for example, FeedApplication_Test.

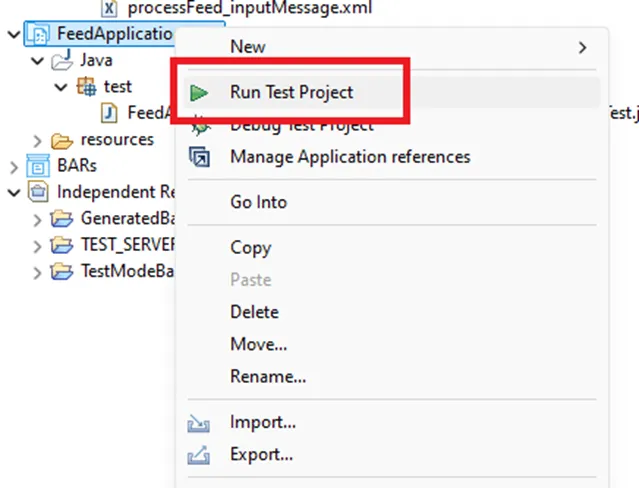

Right-click the test application and select Run Test Project.

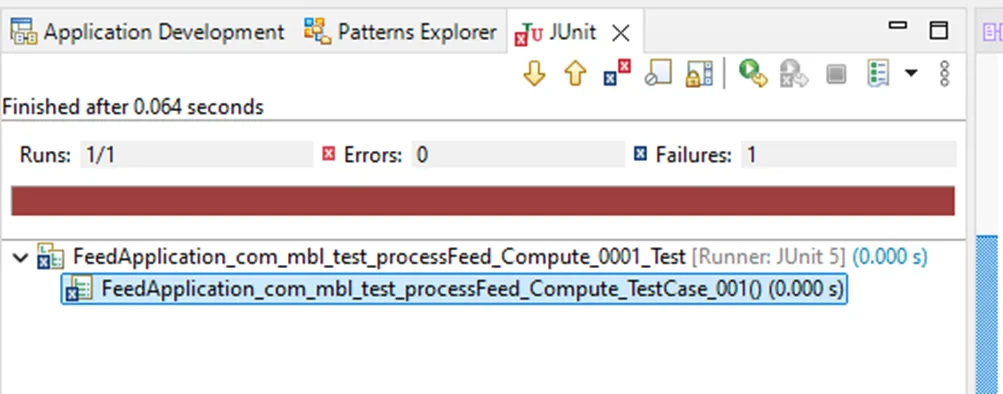

And we have a failure. Who would have expected that 😉

Handling test failures

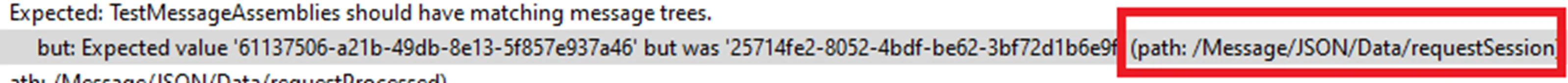

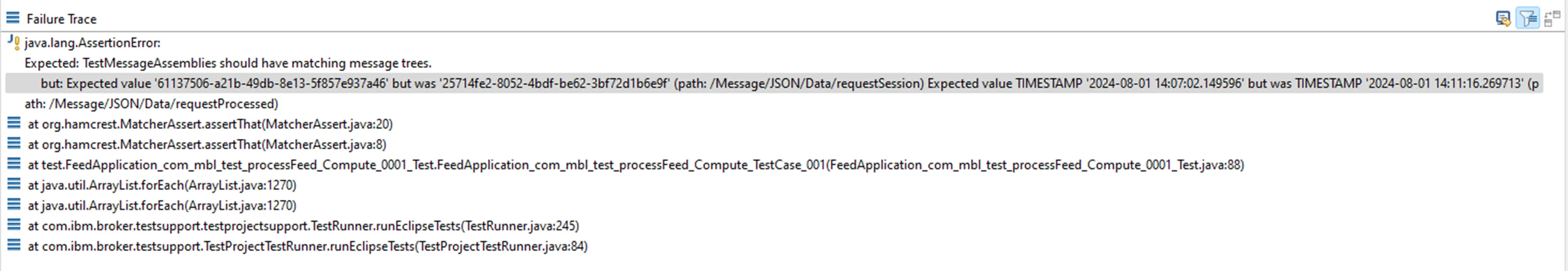

In our case, the test fails because of a UUID field that changes on every run. If you check the failure details, you’ll see this:

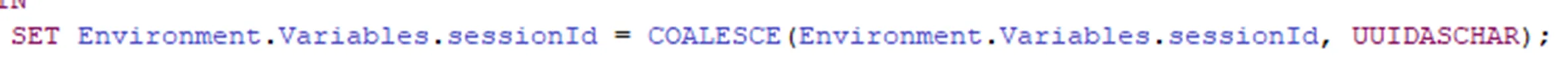

Sure enough, the field /Message/JSON/Data/requestSession is a UUID.

Ignoring dynamic fields

To fix this, we need to tell the test to ignore that specific field.

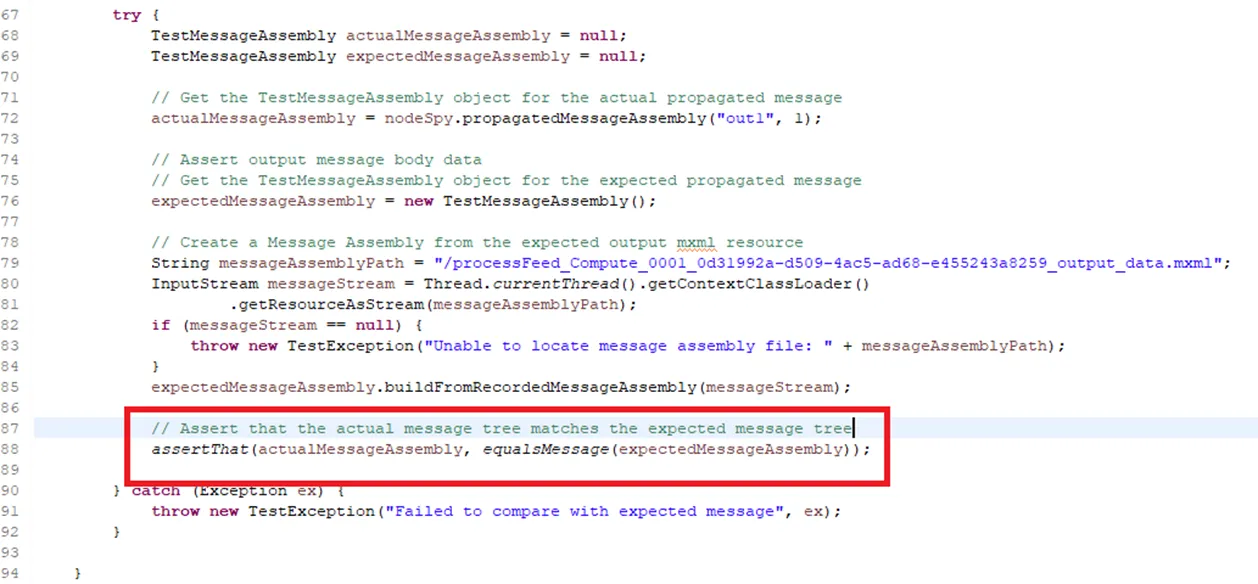

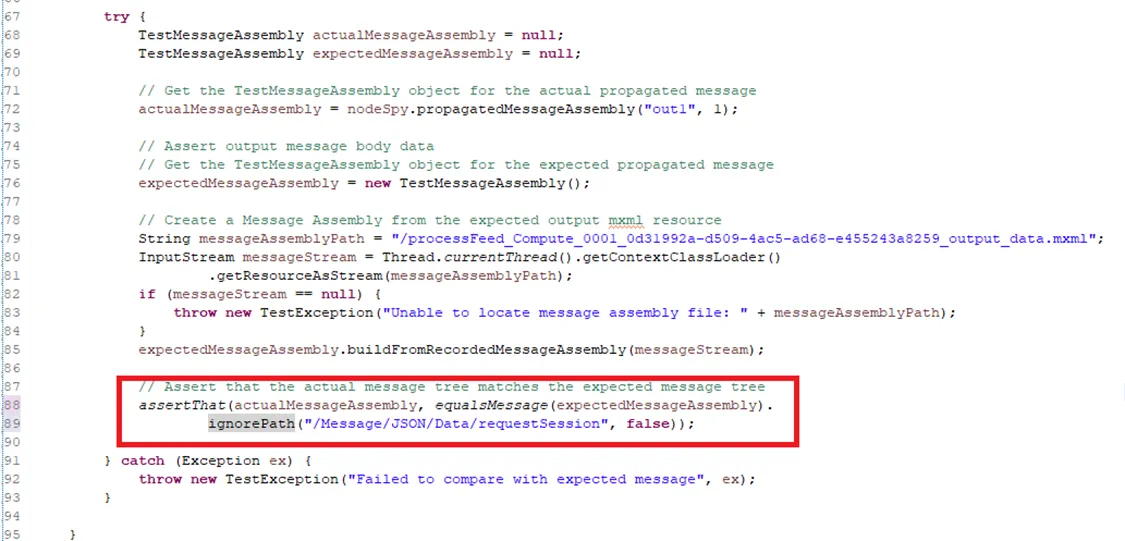

In your Java test code, go to the assert line (mine’s on line 88). We’ll use the ignorePath() method like this:

assertThat(actualMessageAssembly.equalsMessage(expectedMessageAssembly)
  .ignorePath("/Message/JSON/Data/requestSession", false));

`ignorePath()` takes:

The path you want to ignore
A boolean: true if you want to ignore all subpaths too

Save and rerun the test.

Additional challenges: timestamps

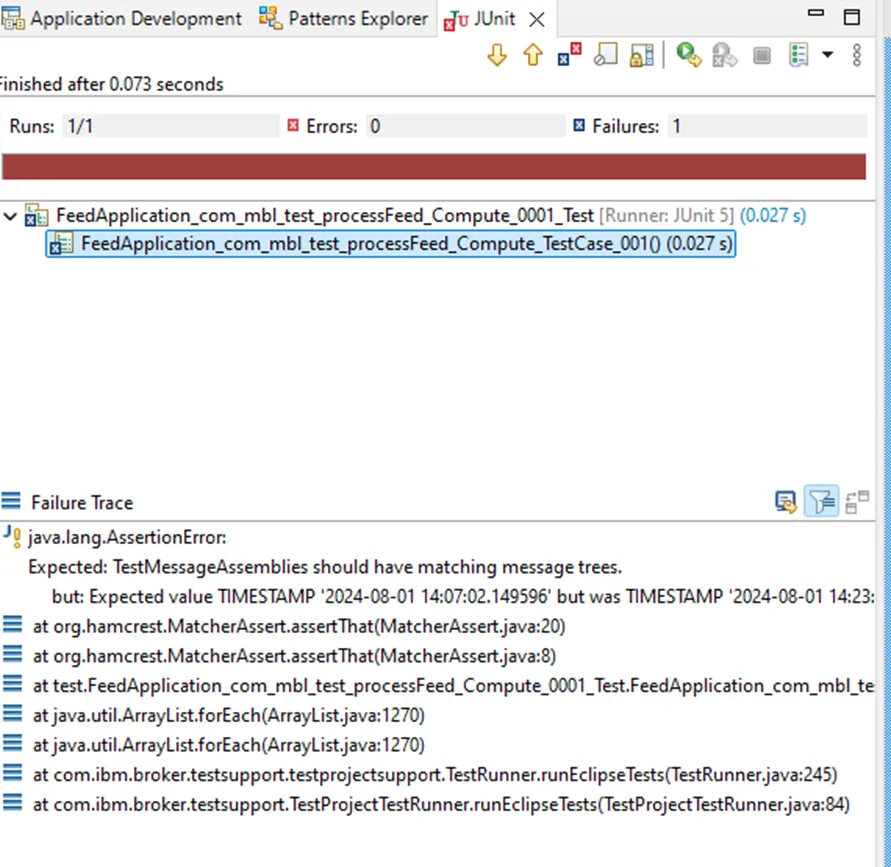

Now that the UUID issue is handled, we hit a TIMESTAMP mismatch.

Again, you can either ignore this specific field or go broader.

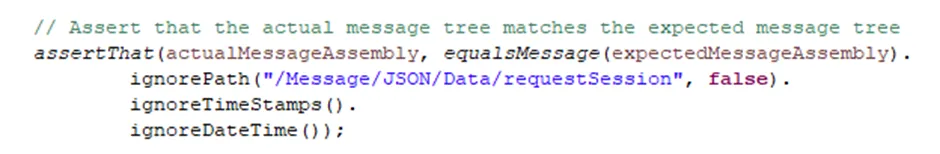

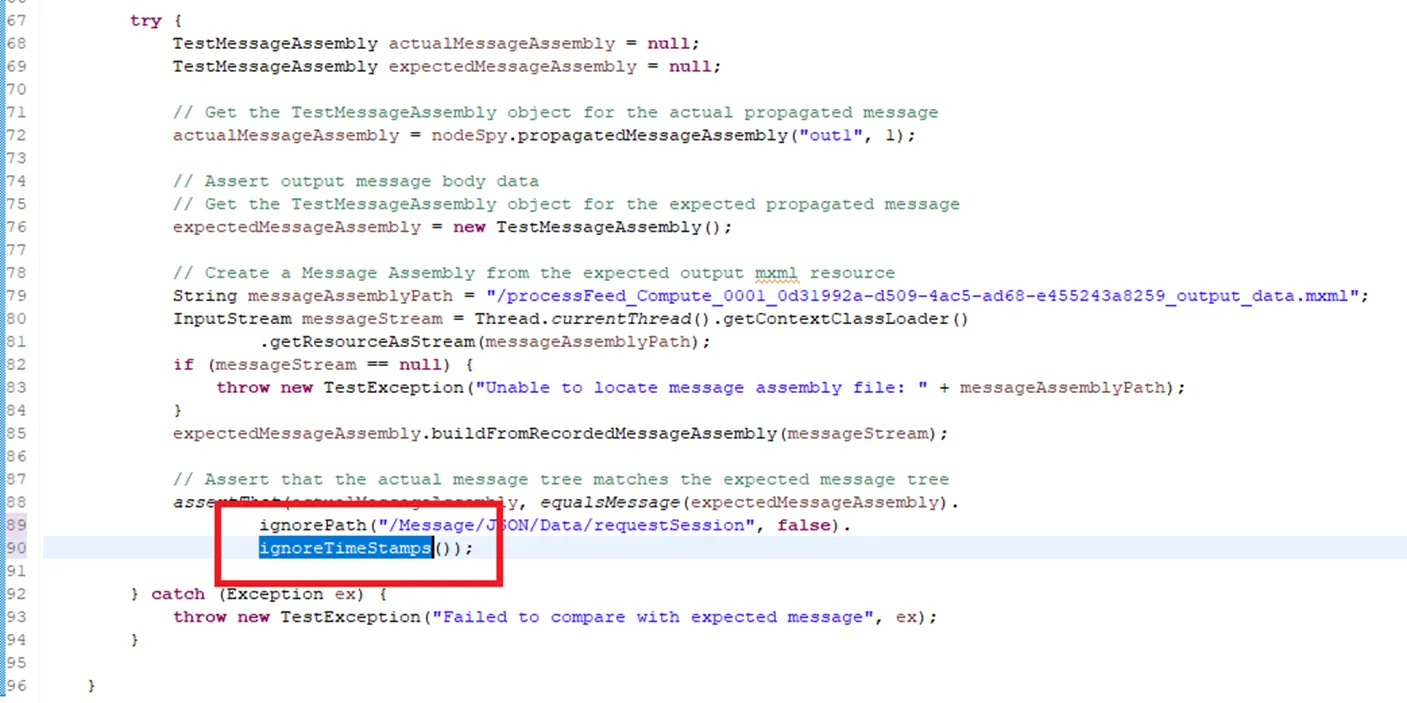

To ignore all timestamps, just chain another method:

assertThat(actualMessageAssembly.equalsMessage(expectedMessageAssembly)
  .ignorePath("/Message/JSON/Data/requestSession", false)
  .ignoreTimeStamps());
