Why Your ACE REST Request Node Isn't Sending Basic Auth

The truth is out there.

How it started

It started, as these things do, with a colleague’s question. Neither of us could crack it. Shame and determination ran deep.

A REST Request node calling a Basic-auth endpoint. We tried the obvious thing first: the node’s Security identity property with a rest:: credential. That worked. Authorization: Basic header went out, the call succeeded. So the flow and the mock endpoint were working. Check.

Then we switched to a Security Profile (the propagation approach), and nothing. No header. No exception, no BIP code, nothing in the event log. The request just went out unauthenticated.

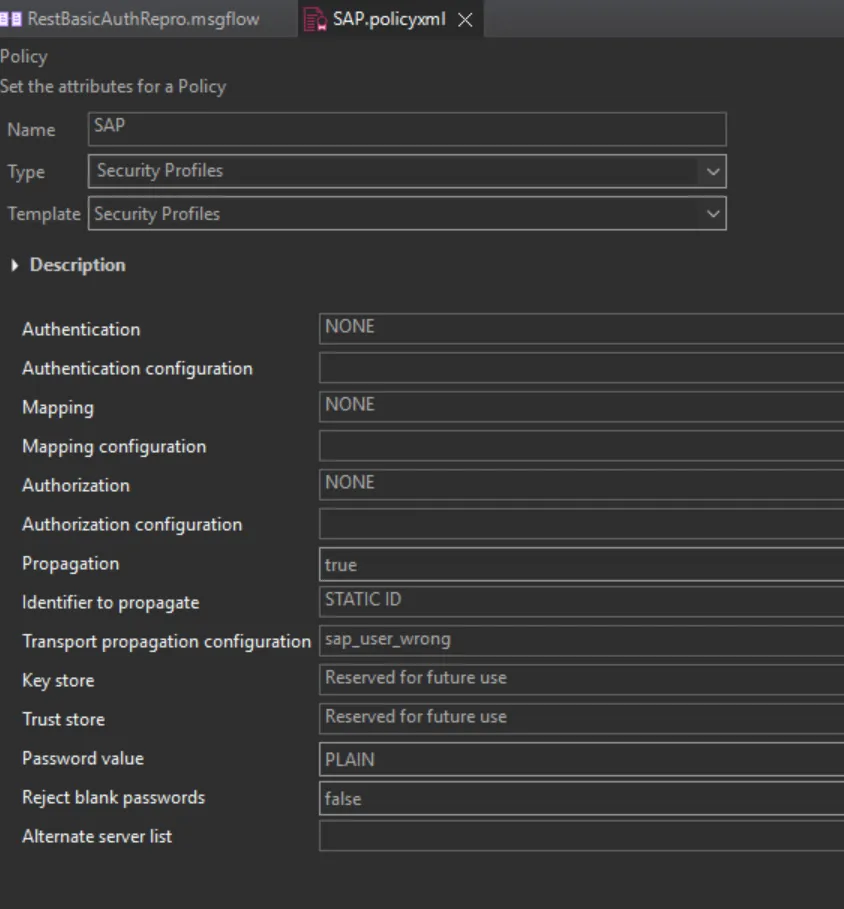

So we did our homework: IBM documentation, videos, every forum thread we could find. As far as any of us could tell, the configuration was correct. And if you point the security identity at an entry that doesn’t exist, you do get an error, so the profile setup was working.

Which is when the actually-useful question finally surfaced:

What if the setup is right, and it’s my endpoint that’s the problem?

Turned out it was. But only partially.

What’s actually happening

A REST Request node has two different credential mechanisms, and they send Basic auth at different moments.

The node Security identity is pre-emptive. It sends credentials on the first request. It’s IBM’s documented way to do Basic auth on a REST Request node.

The Security Profile (identity propagation) is reactive. It’s a general-purpose identity-propagation mechanism, and over HTTP it relies on the standard challenge/response handshake: it only sends credentials after the server replies 401. If your endpoint returns 200 on the first hit (or anything that isn’t a 401 Basic challenge), the profile sends nothing, and raises no error. That’s the silent failure. A simple mock endpoint usually won’t challenge, which is exactly why we hit it.

So “it worked before, now it doesn’t” usually means the downstream’s challenge behavior changed (or you moved from a server that challenges to one that doesn’t), not that your policy is wrong.

The three working configurations

There are three configurations that actually work:

#	Configuration	When Authorization: Basic is sent	Requirements
1	Node Security identity: securityIdentity="<id>"; credential mqsisetdbparms <node> -n rest::<id> -u <user> -p <pass>	Pre-emptively, on the first request	OpenAPI declares an http/basic (or bearer, or apiKey) requirement. oauth2 not supported.
2	Security Profile: securityProfileName="{SecurityRegistry}:SAP"; credential mqsisetdbparms <node> -n <id> (plain name, no prefix)	Reactively, only after the server replies 401	A downstream that actually issues the 401 challenge
3	Security Profile + pre-emptive auth: config #2 plus mqsichangeproperties <node> -e <server> -o ComIbmSocketConnectionManager -n preemptiveAuthType -v Basic	Pre-emptively, on the first request	Server restart; note it’s server-wide

Two gotchas

1. mqsisetdbparms credentials only activate after the integration server is restarted (mqsireload or mqsirestart, if you follow my blogs). Redeploying the app is not enough. You’ll see no credential until the server process reloads, which looks exactly like “auth doesn’t work.”
2. The mechanisms are independent. A REST Request node has both a “Security identity” property and a Policy → “Security profile” field. They’re different features. Setting the Security identity makes Basic work pre-emptively even if your Security profile is doing nothing.

Decision guide

• Calling a normal Basic-auth REST API and your OpenAPI declares the basic scheme? → Use the node Security identity (rest::). Simplest, pre-emptive, done.
• Must use a Security Profile (org standard, identity propagation)? → Fine, but make sure the endpoint challenges with 401, or turn on preemptiveAuthType=Basic (remembering it’s server-wide).
• Endpoint never challenges, and you can’t change the server? → pre-emptive is mandatory (config #1 or #3).

How to reproduce it

The flow, OpenAPI, and Security Profile policy used here live in Ace_test_cases, across the projects RestBasicAuthRepro, RestBasicAuthRepro_test, and SecurityRegistry.

A tiny, self-contained setup:

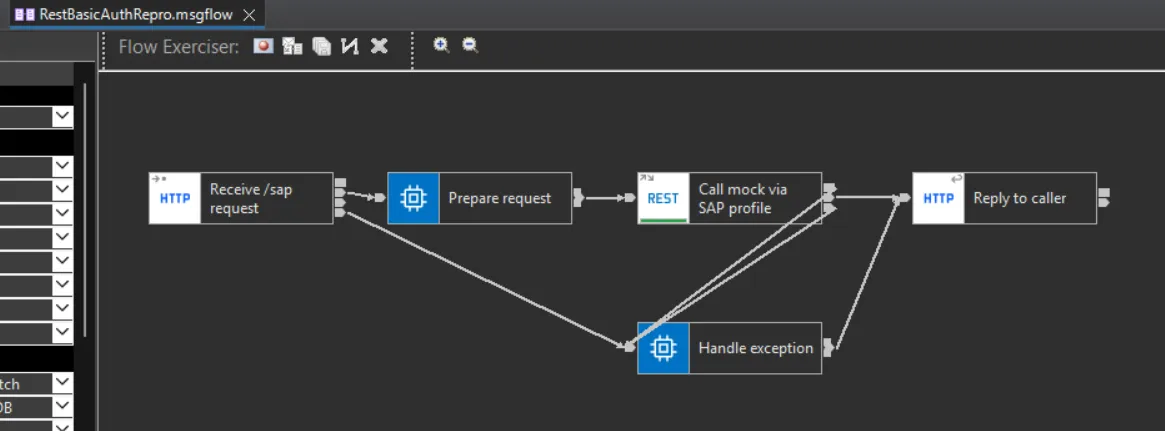

• Flow: HTTP Input /sap → Compute → REST Request → HTTP Reply.

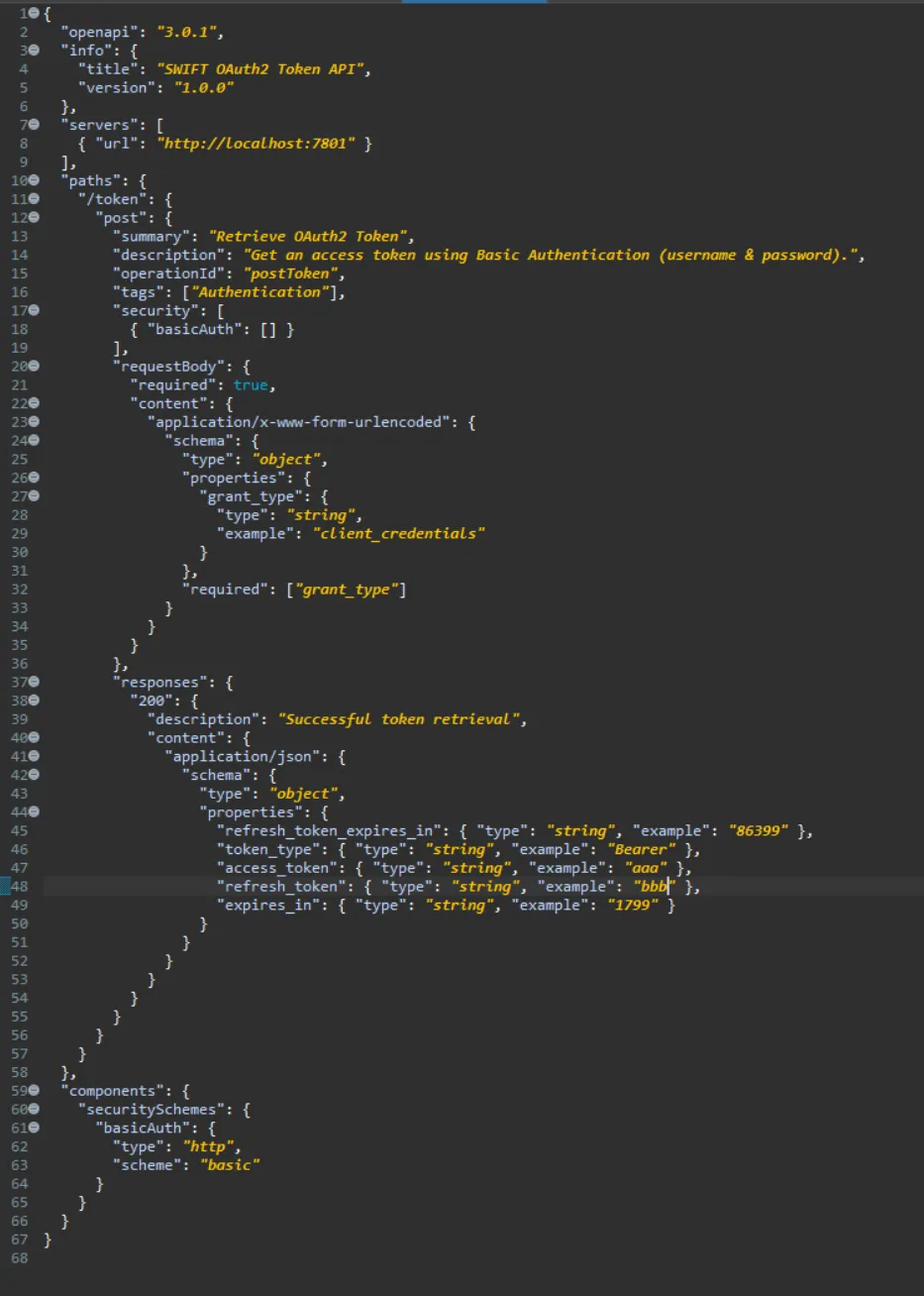

• OpenAPI (openapi.json): one POST /token operation that declares a basic security scheme. securitySchemes: { basicAuth: { type: http, scheme: basic } } plus security: [ { basicAuth: [] } ].

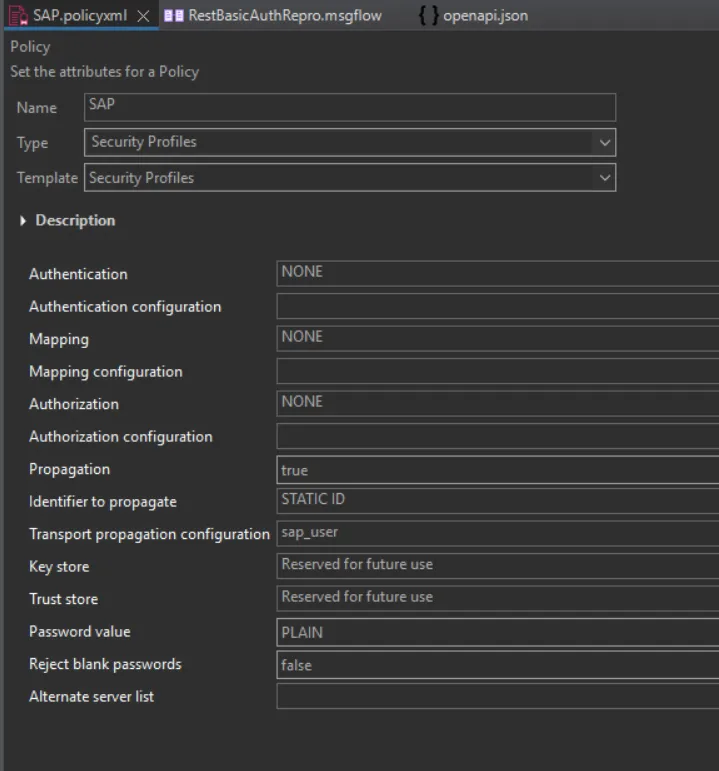

• Security Profile policy (SecurityProfiles): propagation=true, idToPropagateToTransport=Static ID, transportPropagationConfig=<securityId>.



• A header-capturing mock, written in Python, that logs every request’s headers and can run two ways:

  • challenge mode: a request with no credentials gets 401 + WWW-Authenticate: Basic;
  • --no-challenge mode: always 200.

How the mock server works

Full source: mock_server.py in the same repo as the test flow.

The mock is a small, dependency-free Python script (just your standard-library http.server). Its whole job is to sit where the real endpoint would be, record exactly what the REST Request node sends, and optionally behave like a server that demands credentials.

Two things that make it useful here.

It logs every request. For each call it grabs the full header set, pulls out Authorization, and if it is Basic, base64-decodes it so the log is readable. Each request becomes one JSON line in mock_requests.log:

auth = self.headers.get("Authorization")
decoded = None
if auth and auth.lower().startswith("basic "):
    decoded = base64.b64decode(auth.split(" ", 1)[1]).decode("utf-8", "replace")

record = {
    "method": self.command,
    "path": self.path,
    "authorization_present": auth is not None,
    "authorization_decoded": decoded,        # e.g. "myuser:mypass"
    "headers": {k: v for k, v in self.headers.items()},
}

That authorization_present flag is the whole experiment: did the node put credentials on the wire, or not.

It can challenge, or stay quiet. A single flag decides whether a credential-less request gets a 401 (so a reactive client knows to retry with Basic) or is just waved through with 200:

CHALLENGE = "--no-challenge" not in sys.argv

def _respond(self, record):
    # No credentials and challenge mode on -> 401, so a reactive client retries.
    if CHALLENGE and not record["authorization_present"]:
        self.send_response(401)
        self.send_header("WWW-Authenticate", 'Basic realm="mock"')
        self.end_headers()
        return
    # Otherwise 200, echoing back what we received so it's visible from curl too.
    body = json.dumps({
        "authorization_present": record["authorization_present"],
        "received_headers": record["headers"],
    }).encode()
    self.send_response(200)
    self.send_header("Content-Type", "application/json")
    self.send_header("Content-Length", str(len(body)))
    self.end_headers()
    self.wfile.write(body)

Every HTTP verb the node might use maps to the same handler, so a GET, POST, or HEAD are all captured and answered the same way:

do_GET = do_POST = do_PUT = do_DELETE = do_HEAD = _handle

Run it one of two ways:

python mock_server.py                  # challenge mode: 401 until credentials arrive
python mock_server.py --no-challenge   # always 200, never asks for credentials

Flipping between those two modes against the exact same flow is what turns “it doesn’t work” into “oh, it only sends after a 401.” And because the 200 response echoes the headers it saw, you can read the result straight from the curl reply without even opening the log.

What the mock log shows

Config #2 against the challenge mock, two hits, the reactive handshake:

1. POST /token  auth_present=False              -> mock 401 (WWW-Authenticate: Basic)
2. POST /token  auth_present=True   <user:pass> -> mock 200

Config #2 against the --no-challenge mock, one hit, nothing sent:

1. POST /token  auth_present=False   -> mock 200   (no challenge => never sends, no error)

That second trace is the one that bites. Flip on preemptiveAuthType=Basic (config #3) and re-run against the same no-challenge mock:

1. POST /token  auth_present=True   <user:pass>  -> mock 200

Config #1 (node Security identity) behaves like #3 out of the box, pre-emptive and no challenge needed, because the node maps the OpenAPI basic requirement straight to the rest:: credential.

Why this is so hard to find

If you go looking for any of this in the documentation, you mostly won’t find it, and not for lack of trying. The behavior isn’t called out on the pages you’d naturally land on:

• Configuring a message flow for identity propagation walks you through propagation / Static ID / transportPropagationConfig, but never mentions that the resulting credential is sent reactively, only after a 401 challenge.
• Configuring security credentials for connecting to a REST API covers the node Security identity and the OpenAPI security requirement, with nothing about challenge timing.
• The knob that makes the profile pre-emptive, preemptiveAuthType on ComIbmSocketConnectionManager, lives only as a bare property in the mqsichangeproperties reference. Nothing links it from the Basic-auth task pages, and nothing tells you when you’d need it.

There are even APARs (old ones, I’ll grant you that) that show how sharp the edges are here:

• IT36261: preemptiveAuthType is ignored when an outbound socket connection is reused from an earlier request.
• PH05715: HTTPRequest returns 401 Unauthorized even with authentication set.

So a correct-looking Security Profile against a server that doesn’t challenge is a silent no-op, while every page you read implies it should just work. One sentence on those task pages would have saved us an afternoon: “identity propagation sends credentials reactively; set preemptiveAuthType=Basic to send them pre-emptively”. If you hit this, it’s worth a documentation RFE.

Version note

The SecurityProfiles policy XML is byte-identical between ACE 12.0.12 and 13.0.7, and all three configurations behave the same on both. So this is not a v12→v13 regression. It’s pre-emptive-vs-reactive, and which one you happened to have wired up.

---

References

• Configuring a message flow for identity propagation
• Configuring security credentials for connecting to a REST API
• mqsichangeproperties command reference
• APAR IT36261: preemptiveAuthType ignored on reused socket
• APAR PH05715: HTTPRequest returns 401 even with auth set
• mqsirestart on this blog
• All the files used in this blog: the RestBasicAuthRepro, RestBasicAuthRepro_test, and SecurityRegistry projects

---
