Two bugs, one MQ CSU: how 9.4.0.21 broke my mqweb (twice)

Dear Sir/Madam, FIRE!

I’ve had the occasional mqweb hiccup after MQ upgrades before. Up until now, stopping mqweb before patching, and keeping it stopped through any server reboot the maintenance triggered, was the entire fix. Two extra lines in the playbook, problem solved. Apparently, this time, there was more.

Routine CSU month. The IBM MQ 9.4.0.21 cumulative security update had landed in Fix Central, so doing what you do, you install and verify it on your test environment. Not my first rodeo. Pre-upgrade snapshot, shut down dependencies, endmqm, install the maintenance, strmqm, watch the AMQERR logs for anything out of the ordinary. Channels recovered, applications reconnected, queue depths stable, all seemed fine, in retrospect, a bit too fine. Standard upgrade, in and out in twenty minutes.

I went to open the MQ Console for the usual post-upgrade sanity click-through.

Nothing.

> dspmqweb status
MQWB1124I: Server 'mqweb' is running.
MQWB1123E: The status of the mqweb server applications cannot be determined.

> strmqweb
Server mqweb is already running.

> endmqweb
Stopping server mqweb.
[ ...nothing... ]

Schrödinger’s mqweb: simultaneously running, not running, and refusing to die. Excellent. Hold my coffee (too early for beer) and let’s dig.

Bug #1: a broken TEMP path

messages.log had exactly one thing to say that mattered:

java.lang.IllegalArgumentException: Resource root already exists as a file
  (fn=C:/Users/MQADMIN~1/AppData/Local/Temp/3/)
  com.ibm.ws.kernel.service.location.internal.Activator 100
CWWKE0205W: The framework is shutting down because of a previous initialization error.

Translation: Liberty’s location service tried to claim a directory under my admin user’s TEMP, found a file (or something resembling a file) where it expected a directory, and aborted. The \3\ is Windows’ per-session TEMP subdir. RDS sessions, FSLogix, or UAC virtualization each have their own way of putting weird stuff there. Whatever the trigger, the path was broken.

Why now? The CSU bumped Liberty to wlp-1.0.111 (March 2026) and the JRE to 8.0 SR8 FP60. The combo is noticeably pickier about how it resolves java.io.tmpdir. On 9.4.0.20 it simply couldn’t care less. On 9.4.0.21 it blatantly refused.

Two things went wrong at the same time:

Liberty inherited my interactive user’s TEMP because I ran strmqweb from my admin RDP session. Not what you want for live systems.
That TEMP path was broken, file where a directory should be.

So the framework half-started, wrote enough state to look “running” to dspmqweb, then died before exposing a command channel. Which is exactly why endmqweb hung. There was no live Liberty to hear it.

The fix

Find and kill the zombie JVM, clean the path, regenerate Liberty’s workarea, and, most importantly, stop inheriting a user TEMP:

:: 1. Kill the orphan
wmic process where "name='java.exe'" get ProcessId,CommandLine | findstr mqweb
taskkill /F /PID <pid>

:: 2. Inspect the broken path; delete or rename
dir "C:\Users\<user>\AppData\Local\Temp"
:: if a stray file '3' is there → delete
:: if it's a folder with bad ACLs → ren 3 3.bak

:: 3. Clear stale Liberty state
rmdir /S /Q "<DataPath>\web\installations\<inst>\servers\mqweb\workarea"
rmdir /S /Q "<DataPath>\web\installations\<inst>\servers\mqweb\logs\state"

If you can’t clean the workarea or state folders, you didn’t kill all the zombies. taskkill /F is your friend.

Then I pinned Liberty’s temp dir in jvm.options so it never inherits a user profile again:

-Djava.io.tmpdir=C:\ProgramData\IBM\MQ\web\tmp

strmqweb
Starting server mqweb.
Server mqweb started.

Jackpot. Console reachable.

Time to log in. Surely there wasn’t going to be another error. You see where I’m going with this, right?

Bug #2: ltpa.keys wouldn’t decrypt

And the actual login fails. My credentials aren’t being accepted.

Checking the status:

dspmqweb
MQWB1124I: Server 'mqweb' is running.
MQWB1123E: The status of the mqweb server applications cannot be determined.
A request was made to read the status of the deployed mqweb server applications, however the data appears corrupt. This may indicate that there is already an mqweb server started on this system, probably related to another IBM MQ instance.
Check the startup logs for the mqweb server, looking in particular for conflicting usage of network ports. Ensure that if you have multiple mqweb servers on a system, they are configured to use distinct network ports. Restart the mqweb server and ensure it started correctly. If the problem persists, seek assistance from IBM support.

Not good. Let’s check the logs:

[CWWKS4000E] A configuration exception has occurred.
The requested TokenService instance of type Ltpa2 could not be found.

ltpa.keys is encrypted with a key derived from a configured password, using the JRE’s crypto. The CSU’s JRE bump (SR8 FP60) apparently was strict enough to refuse the key file the previous JRE had written. No keys → no Ltpa2 token service → no login.

The fix

Let Liberty regenerate the file from scratch:

endmqweb
cd /d "<DataPath>\web\installations\<inst>\servers\mqweb\resources\security"
ren ltpa.keys ltpa.keys.bak-pre-9.4.0.21
strmqweb
Starting server mqweb.
Server mqweb started.

On startup Liberty creates a fresh ltpa.keys. If you’ve got an encoded LTPA password in mqwebuser.xml from an older JRE, you may also need to re-encode it with securityUtility encode from the new install, but mine regenerated cleanly.

Let’s check the status first, before using the webui:

dspmqweb
MQWB1124I: Server 'mqweb' is running.
URLS:
https://somerandomhostname.com:9443/ibmmq/rest/
https://somerandomhostname.com:9443/ibmmq/console/

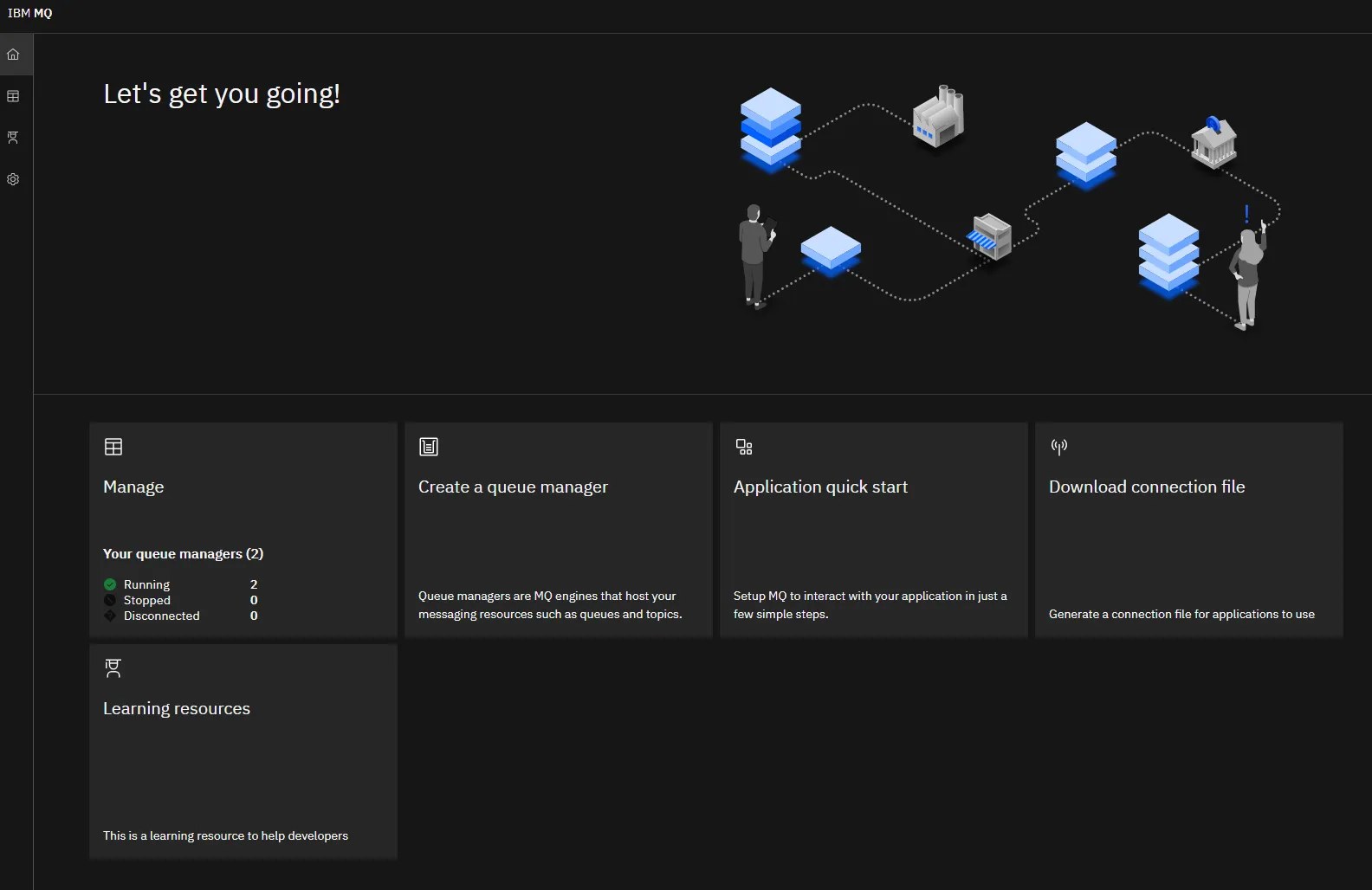

Problem fixed.

What went into the playbook

A CSU is “just a security update” right up until it isn’t. Two things went straight into my upgrade playbook:

Pin java.io.tmpdir for mqweb permanently. Don’t let it inherit whatever the launching user’s profile happens to have. Set it in jvm.options once, never think about it again.
Treat ltpa.keys as upgrade-volatile. When the bundled JRE bumps, expect to regenerate. Have the rename-and-restart steps in your runbook so you’re not Googling at 11pm, or whenever you plan your upgrades.

A boring but useful conclusion

Read the bundled component levels in the release notes, or at least feed them to your AI agent of choice (Bob can really help you here). The wlp/JRE bump is what changed the rules under me, not anything in MQ proper. If you see the Liberty version or the SR/FP move, assume the Liberty-facing edges of your config (TEMP paths, keystores, LTPA, custom mqwebuser.xml) need a once-over before you trust the next upgrade.

No fire this time. Next CSU, we’ll see.
