Keeping stuff stopped in IBM ACE

Sometimes you need to start an integration server, but you don’t want everything inside it to come up with it. Maybe you’re doing maintenance on a specific flow, deploying a new version that shouldn’t go live yet, or just need the server up for inspection without processing traffic.

ACE gives you a few tools for that. They don’t all behave the same way, and mixing them up can lead to surprises.

Stopping during deployment

The cleanest place to set this is in the BAR file itself. Every application and message flow has a Start mode property under the Workload Management properties group.

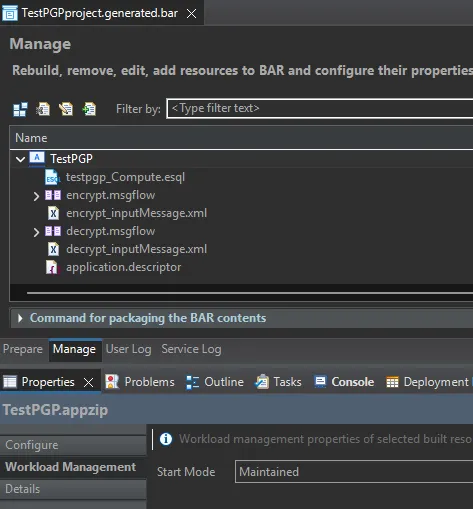

application

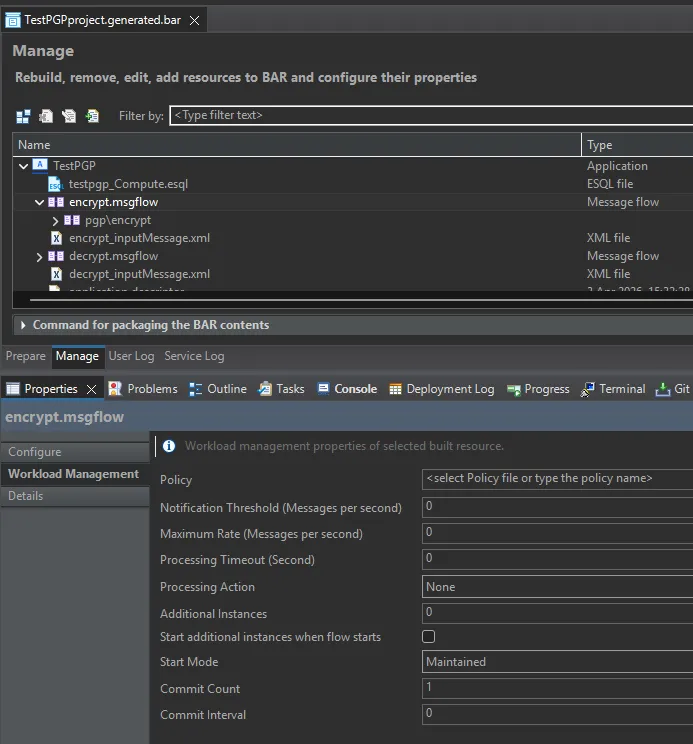

flow

Three values:

Maintained: Keeps the current state across redeploys and restarts. Only changes when you explicitly start or stop it.
Manual: Never starts after deployment, redeployment, or restart. Has to be started manually every time.
Automatic: Always starts after deployment, redeployment, or restart. No exceptions.

Maintained is the default. Nothing changes unless you change it.

You can also set this via an override properties file instead of in the BAR editor. The property is set at application or flow level using # as a separator:

startMode = manual
pgp.decrypt#startMode = manual

Pass the override file when deploying:

ibmint deploy --input-bar-file MyApplication.bar \
              --output-integration-node <nodeName> \
              --output-integration-server <serverName> \
              --overrides-file overrides.properties

And deploy as normal.

Stopping at runtime

If the server is already running, and you want to stop something inside it, mqsistopmsgflow is the tool. No restart required.

Stop a specific integration server:

mqsistopmsgflow [NodeName] --integration-server [IsName]

Stop an application inside a specific integration server:

mqsistopmsgflow [NodeName] --integration-server [IsName] --application [AppName]

Stop all applications in an integration server:

mqsistopmsgflow [NodeName] --integration-server [IsName] --all-applications

Stop all applications across all integration servers on a node:

mqsistopmsgflow [NodeName] --all-integration-servers --all-applications

There is no ibmint equivalent for stopping applications or flows inside a running integration server. ibmint stop server exists, but it stops the integration server itself, not what runs inside it.

D:\IBM\ACE\13.0.7.0>ibmint stop server
BIP8007E: Mandatory argument missing.
BIP15193I: Stop a managed integration server.
Syntax:
     ibmint stop server <serverName> (integrationNodeSpec) [--timeout-seconds <seconds>] [--trace <filePath>]

The deploy problem

One thing catches people off guard. If you stop a flow with mqsistopmsgflow and then deploy a new BAR, what happens next depends on the flow’s startMode. With automatic, the deployment brings it back up regardless of what you did before. With maintained, it stays stopped because the server keeps the current state. With manual, it never starts, no matter what.

Basically, mqsistopmsgflow on its own is only good for temporary stops. And only reliable if the startMode is set to back it up.

Stopping during startup

There’s also a switch on the IntegrationServer command itself. When you start an independent integration server from the command line, --start-msgflows false brings it up with every message flow in stopped state. The flows are initialized but won’t accept anything through their input nodes.

IntegrationServer --work-dir [workpath] --start-msgflows false

Default is true, so flows start as usual unless you say otherwise.

This is a different kind of stopped, if I can call it that. No state is stored anywhere. Start the server without the flag and the flows come up like normal. With the flag on, you can bring them up one at a time afterwards if you want.

It’s also what lets you run integration tests against flows that aren’t live. Pair it with --test-project and the tests run while the flows stay stopped.

.stopped files

The last option is just a file on disk. You can prevent an integration server, application, or flow from starting in the first place by placing an empty .stopped file in the right location. ACE picks it up when the component above it restarts. For a flow, restart the application. For an application, restart the integration server. For the integration server, restart the node.

You don’t need anything in the file. Its presence is enough.

Node-managed integration server:

%MQSI_WORKPATH%/[NodeName]/servers/[IsName]/.stopped
%MQSI_WORKPATH%/[NodeName]/servers/[IsName]/overrides/[AppName]/.stopped
%MQSI_WORKPATH%/[NodeName]/servers/[IsName]/overrides/[AppName]/[FlowName]/.stopped

Standalone integration server (same structure, different root):

[Standalone IS workpath]/run/.stopped
[Standalone IS workpath]/run/overrides/[AppName]/.stopped
[Standalone IS workpath]/run/overrides/[AppName]/[FlowName]/.stopped

A .stopped file always wins, even if startMode is set to automatic.

You can also set this up before anything is deployed. Create the folder and drop a .stopped file in it, and that component won’t start when deployed. Stopping an application prevents its flows from starting too. If you only want a specific flow stopped, drop the .stopped file in that flow’s own overrides directory. Same if you want the application to start but one flow inside it to stay down.

Delete the flow and its folder goes too. A redeployment keeps it.

It’s also the only approach that needs neither a running server nor a prior deploy.

Summary

Approach	When it works	Survives deploy?	Survives restart?
`startMode=manual`	At deploy time	Yes	Yes
`startMode=maintained`	At deploy time	Yes, keeps current state	Yes, keeps current state
`mqsistopmsgflow` (no BAR update)	While server is running	No	No
`mqsistopmsgflow` (with BAR update)	While server is running	Yes, only with `maintained`	Yes, only with `maintained`
`--start-msgflows false`	At server startup	No	No, set again on relaunch
`.stopped` file	Any time	Yes	Yes

Pick the row that matches when you need the control to kick in.

Written by Matthias Blomme
