Opening an IBM ACE support case with a custom Bob mode

Matthias Blomme ⏱ 23 min
  • ace
  • bob
  • support
  • diagnostics
  • abend
  • aceDataCollector
On this page

Opening an IBM support case for ACE can be a chore you almost always do under pressure, usually when something is already on fire. A good chunk of time goes into remembering what to collect: the exact version, the right logs, the trace, the abend file, … You always (I say ‘you’, but maybe it’s just me) forget that one thing support asks for two days later, that you could have grabbed in the first round. I do it rarely enough to forget some of these details, and the steps are spread across a dozen documentation pages.

So I put it in a mode.

It lives here: github.com/matthiasblomme/bobmodes, public, so you can grab it too.

What it actually does

Enough chit-chat. The mode acts as a senior ACE support specialist. You describe the problem, and it walks you through collecting a complete, well organised diagnostic bundle, the kind IBM Support can act on immediately instead of bouncing back with “can you also send…”.

It runs in five phases:

  1. Triage: a few questions, one or two at a time, to pin down the symptom, the timing, which node and integration server are involved, and what changed recently. It uses the answers to classify the problem.
  2. Runtime access check: do you have a shell on the ACE server or not. If yes, and you allow it, it runs the commands. If no, it hands you a ready-to-run script and asks for the output.
  3. Baseline collection: mqsiservice -v for the version, then aceDataCollector, which is the single most complete automated diagnostic tool ACE ships and has no runtime impact.
  4. Problem-specific diagnostics: a decision tree per problem type. Event log windows for a crash, user trace and ACELogAnalyser for performance, ODBC trace for a database issue, library path ordering for a GSKit problem, and so on.
  5. Analysis and case generation: it self-checks the data, then writes an ibm_case_submission.txt with every field the IBM portal wants, title, product, exact fix pack, a severity suggestion, business impact, and a structured description, ready to paste.

The classification happens in two steps. First a simple split: broken or slow. Then, if it’s broken, the specific type (crash, message flow, deployment, database, SSL). That first split decides how you collect, not just what. On a slow system you reproduce and trace, on a broken one you gather what the failure already left behind.

There’s one more rule-set I haven’t mentioned yet, and it overrides all five phases: an optional file your organisation can fill in. With it in place, the mode follows your redaction and governance rules without you re-explaining them each time. More on that below.

Nothing the skill does is destructive. It gathers the data, scopes the problem, organises the bundle, and writes the case text. The collecting is the part everyone gets wrong under pressure anyway, so that is the part it owns.

It is also grounded in IBM’s “Troubleshooting and support” documentation. The mode does not bundle the IBM docs themselves, those are copyrighted, so it links to them by URL instead. What it does ship is a workflow and a diagnostics guide distilled from that material, so its command syntax and file paths are not invented on the spot.

Two entry points, one workflow

The repo is laid out like this:

bobmodes/
├── README.md                        # install + prerequisites
├── scripts/
│   └── Import-BobModes.ps1          # imports modes into a project's .bob/custom_modes.yaml
└── bobmodes/
    ├── README.md                    # per-mode docs
    └── ace-support-case/            # one mode per folder; this post covers this one
        ├── .bobmodes                # the Bob mode definition
        ├── SKILL.md                 # the Claude skill entry point
        ├── ace_support_case.md      # original working notes
        ├── custom-rules/            # optional org-specific rules (empty by default)
        └── references/              # workflow, diagnostics guide, IBM doc links

The .bobmodes file is the one Bob cares about. It is a YAML file containing a slug, a name, a description, when it should trigger, which tools it gets, and the instructions that make up the workflow above.

The .bobmodes skeleton, just to show the layout:

customModes:
  - slug: ace-support-case
    name: 🆘 ACE Support Case
    description: >-
      Use this skill when the user wants to open an IBM support case for ACE,
      needs to gather diagnostics, references BIP2111 / BIP2060, ...
    roleDefinition: >-
      You are operating as a senior IBM App Connect Enterprise (ACE) support
      specialist guiding the user through diagnostic collection...
    whenToUse: >-
      Use this mode when the user needs to raise or prepare an IBM ACE support
      case: gathering diagnostics, investigating a crash or abend, ...
    groups:
      - read
      - - edit
        - fileRegex: \.(md|txt|sh|bat|csv|json|log)$
          description: Diagnostic scripts, collected text/logs, and case submission files only
      - command
    customInstructions: >-
      Read references/workflow.md before starting. Also read custom-rules/rules.md
      and apply anything in it. Then the five phases above...

The groups block is where you specify what it can do: it can read anything and run commands, but editing is limited to diagnostic and text files. It is not going to touch your .msgflow or your ESQL files while collecting a support bundle.

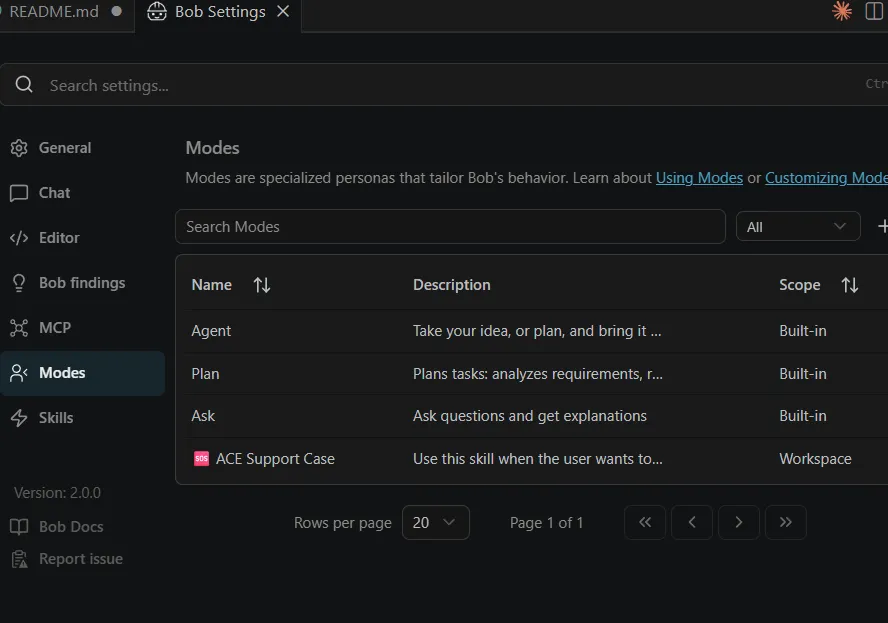

Getting it into Bob

Custom modes are imported per project. The repo ships a small PowerShell importer that scans a source path for .bobmodes files and merges them into a target project’s .bob/custom_modes.yaml, skipping any bobmode already in there.

git clone https://github.com/matthiasblomme/bobmodes.git
cd bobmodes
.\scripts\Import-BobModes.ps1 -SourcePath ".\bobmodes" -TargetProjectPath "D:\Projects\YourProject"

It will create .bob/custom_modes.yaml if the project does not have one yet, or merge into it if it does. Reload the VS Code window (Ctrl + Shift + P, then Reload Window) and the mode shows up as 🆘 ACE Support Case in the dropdown, with a /ace-support-case slash command next to it.



Using it

You do not have to fill in a form, I would never put you through that. You describe what happened, in your own words:

My ACE integration node crashed last night with a BIP2111. What do I need to
collect for an IBM support case?

Or

ACE throughput dropped off a cliff this morning. Help me gather diagnostics for IBM.

From there it runs the triage questions, checks whether you can reach the server, and either runs the baseline collection or writes you a script to run. It assembles everything into an ACE_SupportCase_<NodeName>_<YYYYMMDD>/ folder and finishes with the case submission text. The boring, easy-to-forget parts, version, timing window, abend file, are the parts it lives for.

Bending it to your house rules

The default workflow is deliberately generic. It does not know that your infosec team wants certain fields scrubbed before anything leaves the building, or that nothing goes to IBM until there is a Jira task or a ServiceNow ticket raised for it. No shipped mode can guess that.

So there is a custom-rules/rules.md. Empty by default, which means the mode runs exactly as described above. Drop your own rules in it and the mode applies them on top of its default steps. When one of your rules contradicts a default step, your rule wins, and the mode tells you it is overriding the default instead of doing it quietly.

The kind of thing that belongs in there:

  • Redaction and data handling. What gets scrubbed before the bundle goes anywhere, the approved upload channel (portal attachment, ECuRep, encrypted), and a hard no on production data.
  • Where your logs actually live. A custom work-dir, container volume paths, or a log aggregator like Splunk or ELK instead of the local error log.
  • Internal governance. The incident or change ticket you have to raise first, your internal severity mapping, and where the bundle has to be stored.
  • Entitlement. IBM Customer Number, site ID, support tier, named callers, so the case goes out under the right account.
  • Your own collection procedure. House scripts and flags where they differ from the stock aceDataCollector and trace steps.

Leave it empty and nothing changes, which is the default for a reason. Most people just want the case collected. If you are working on secured systems, or with sensitive data, just add generic (Redact all hostnames), or specific (Remove all mentions of user secret-user-1 and domain my.super.secret.domain.com) rules and your data will be scrubbed.

Just do me one favour, don’t push those custom rules back into my public repository.

Testing it without waiting for an outage

A support-case mode is awkward to dry run, because you need a case. And the cleanest signal it keys off, an abend file, never shows up during normal operation. Which is exactly what makes it useful, and a bad thing to sit and wait for.

So let’s make one on purpose.

Lab only

Everything below deliberately crashes an integration server. Do it on a development or test server you own, never anywhere near production. Or better yet, use your local system. Abend files are never produced during normal operation, so the only way to get one is to cause it.

When an integration server process ends abnormally, ACE traps that and writes an abend file to the errors directory before it goes down. On Windows that is <INSTALL_DIR>\errors\, logged as BIP2111. On Linux it is /var/mqsi/errors/, logged as BIP2060. IBM’s own list of what causes one includes “a user-defined extension causes an instruction in the integration server process that is not valid”, which is the door we are going to walk through.

The clean way: crash the JVM from a JavaCompute node

A JavaCompute node runs inside the integration server process, on the embedded JVM. If you make that JVM segfault, the whole server goes down, hard, and you get an abend file. sun.misc.Unsafe lets you do precisely that from plain Java: write to a null address and the JVM takes a SIGSEGV it cannot recover from.

Drop a JavaCompute node behind any input node and give it this evaluate:

import com.ibm.broker.javacompute.MbJavaComputeNode;
import com.ibm.broker.plugin.MbException;
import com.ibm.broker.plugin.MbMessageAssembly;
import java.lang.reflect.Field;
import sun.misc.Unsafe;

public class Crash_JavaCompute extends MbJavaComputeNode {

    public void evaluate(MbMessageAssembly assembly) throws MbException {
        try {
            Field f = Unsafe.class.getDeclaredField("theUnsafe");
            f.setAccessible(true);
            Unsafe unsafe = (Unsafe) f.get(null);
            unsafe.putAddress(0L, 0L); // write to address 0 -> SIGSEGV -> JVM down
        } catch (ReflectiveOperationException e) {
            throw new RuntimeException(e);
        }
    }
}

This works on ACE 12 (Java 8) and ACE 13 (Java 17), for slightly different reasons. On Java 8 there are no modules, so sun.misc.Unsafe is just there for the taking. On Java 17 it lives in the jdk.unsupported module, which is exported by default, so you still do not need any extra JVM flags. Either way, deploy the flow, send a single message through it, and the integration server is gone, with a fresh abend file waiting in the errors directory.

The quick way on Linux: send it a signal

No flow, no deploy. Find the integration server process and hand it a signal ACE traps:

# independent server -> the IntegrationServer process
# node-managed server -> the DataFlowEngine process
ps -ef | grep -i integrationserver | grep <serverName>

kill -SEGV <pid>     # or -ABRT

ACE’s signal handler catches SIGSEGV or SIGABRT, writes the abend file, then lets the process die. Do not reach for kill -9: SIGKILL cannot be trapped, so you get a dead server and no abend file, which is the one thing you were trying to produce.

There is a third option from IBM’s list, running the server out of memory, but it is far less controllable and a lot messier to clean up. The two above are enough.

The lazy way: don’t break anything at all

Now that I have taught you how to break stuff on purpose, and at least some of you have tried this, let me remind you it is also possible to just create the files by hand 😉

The mode keys off what is on disk, not off a live crash: an abend file in the errors directory, a dump next to it, an event-log excerpt under logs. None of that has to come from a real integration server going down. Make a text file named like an abend, paste in a plausible BIP2111 stack, add a couple of lines to a fake event log, and point the mode at the folder. It reads what it finds, classifies the case, and writes the submission exactly as it would for the real thing. Just ask Bob, he can create these on the fly.

No real crash needed, and no server harmed. Hand-written (or Bob-written) .txt files stand in for the real .Abend, .dmp, and .evtx exports, and that is enough to exercise the whole workflow end to end. A lot less dramatic than segfaulting a JVM.

So if all you want is to watch the mode run, skip the crash and fake the evidence.

Point the mode at the mess

Now the actual demo. Open the ACE Support Case mode and tell it the server crashed.

It checks the errors directory, finds the abend file, and treats the case as a crash from there. It asks for the version, runs aceDataCollector, scopes the event log or syslog to a window around the crash instead of dumping the whole thing, pulls the abend and dump files, and flags the abend as high priority. Then it writes the ibm_case_submission.txt: the BIP code, the exact fix pack, a severity suggestion, and a structured problem description.

That is the case you would otherwise have spent an afternoon assembling by hand, built from a crash you caused on purpose in under a minute.

A real run

I put it through a full run against a simulated ACE 13 abend on a test box, custom rules switched on.

It classified the crash on its own. BIP2111E, a MiniDump sitting in the errors directory, so: broken, not slow, and specifically a crash. No room for doubt.

The redaction rules fired after the collection completed, without me needing to ask. The custom-rules/rules.md said to strip OS, host, user and network details before anything goes to IBM, so mqsiservice -v came out scrubbed:

Operating System:  Windows Server 2022 (10.0.20348) 64-bit    # before
Operating System:  [REDACTED]                                 # after

It caught the more subtle stuff too. Even the word Windows in an event-log export header counts as an OS hint, so it went:

WINDOWS EVENT LOG EXPORT - Application    # before
EVENT LOG EXPORT - Application            # after

The case text got the same treatment, plus a note for IBM saying the OS was redacted and available on request via a secure channel. The bundle is safe to hand over without me combing through it by hand first.

CASE TITLE:
[ACE 13.0.7.2] Integration server 'default' abend (BIP2111E / ACCESS_VIOLATION) on ACE13 - Windows

PRODUCT VERSION:  13.0.7.2 Fix Pack 2
SEVERITY:         2 - Significant impact. Integration server abended, dropping in-flight
                  messages; root cause unknown and may recur.
OPERATING SYSTEM: [REDACTED per data-handling policy - provided in attached mqsiservice_v.txt]

And the Windows left in that title is the redaction, not a gap: it trims the OS down to the bare family and drops the version, so Windows Server 2022 comes out as just Windows. Enough for IBM to know the platform, not enough to pin down the exact build.

Paste that into the portal, attach the bundle, done.

And if you want more, or less, redaction, just update the custom rules.

Run it yourself

The mode is on GitHub, importable into any Bob project with the included script. The support workflow is the same one I used to run from memory and a handful of bookmarked doc pages, except now it does not let me forget the version or the timing window.

And if you want to watch it work before you need it for real, crash a test server with a couple of lines of Java, or just make up some files, and point it at the mess.
